3D SBI

3D SBIAddDate:2017-04-18
3D SBI

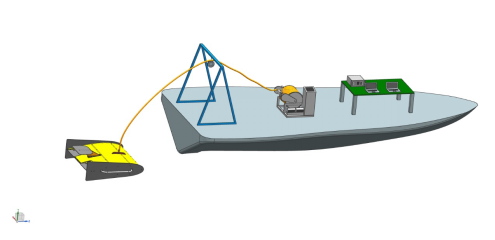

Form 1: 3D SBI Work sketch map

Overview

(1) 3D SBI system includes: launch matrix, the receiving array, electronic systems, data processing and display software, watertight connectors and Internet cables and other five components.
(2) The main functions of 3D SBI system are as follows: imaging the targets such as oil and gas pipelines buried on the seabed, as the basis to determine the location, direction and burial depth of the target.

The main performance indicators are as follows


Form 2  3DSBI Performance Index
Way of working Look -down
Output the result Three-dimensional image / Two-dimensional image
Number of elements 192
Highest resolution 6.25cm*10cm
Maximum buried depth (pipeline target, mud bottom)  5m
Power consumption Less than 2000W
Speed  Max speed 5Kn
Weight Not more than 200 kg
Scale Not more than 1.8m*1.28m
Installation  Common installation, according to the requirements of the carrier to adjust the scale and weight
